| Product Attribute | Attribute Value |
|---|---|
| Diameter, Shaft | 0.25 In. |
| Dielectric Strength | 500 VAC |
| Dimensions | 0.86" Dia. x 0.48" L |
| Element Material | Conductive Plastic |
| Insulation Resistance | 1000 Megohms |
| Linearity | 1 % |
| Maximum Operating Temperature | 105 °C |
| Mechanical Angle | 320 ° |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Bushing Mount |
| Number of Turns | 1 Turn |
| Power Rating | 1 W |
| Primary Type | Potentiometers |
| Resistance | 10 kOhms |
| Resolution | Infinite |
| Rotational Life | 10000000 Turns |
| Series | |
| Temperature Coefficient | ±400 ppm/°C |
| Termination | Lugs |
| Tolerance | ±10 % |
| Torque | .8 Oz./in. |
| Type | Rotary |
Overview

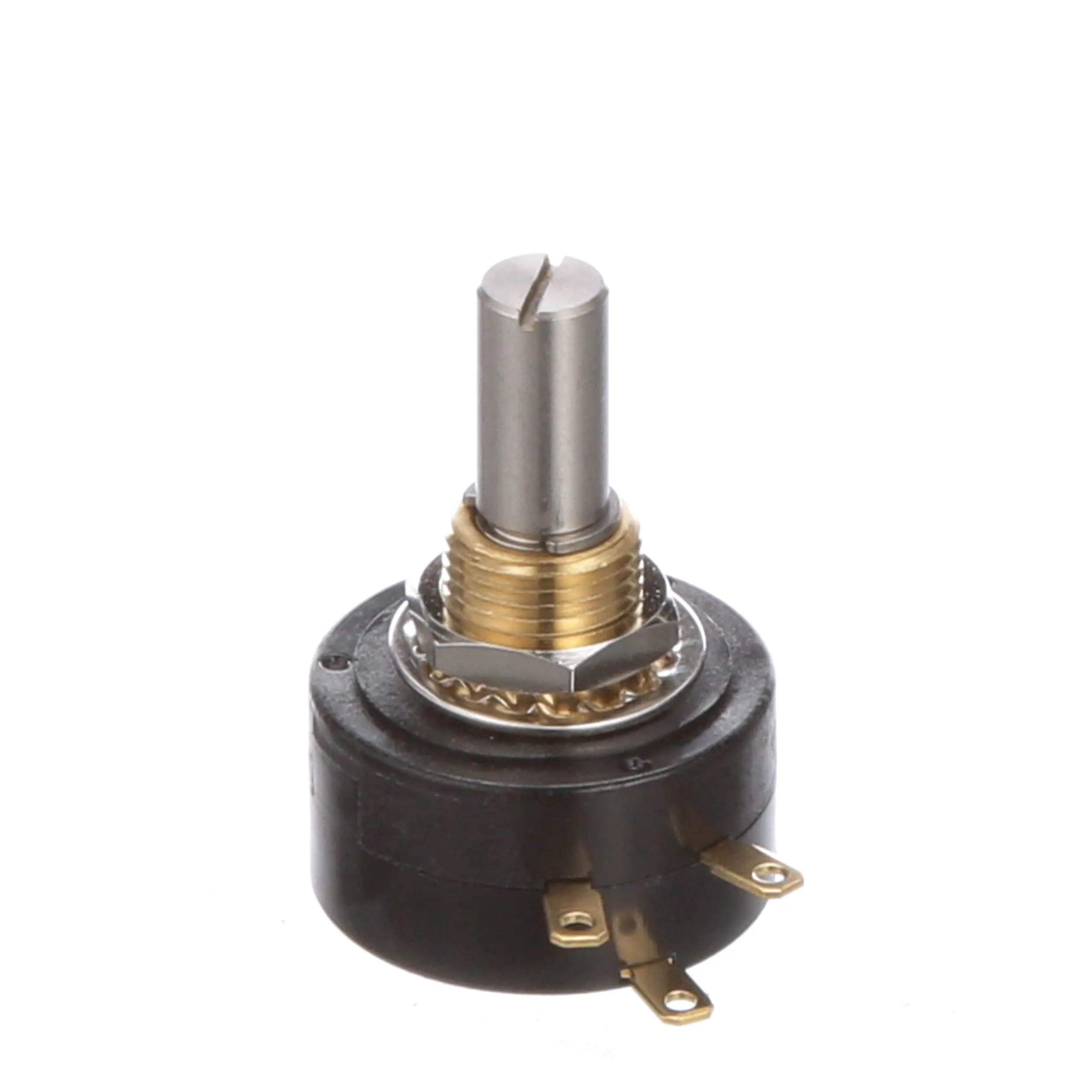

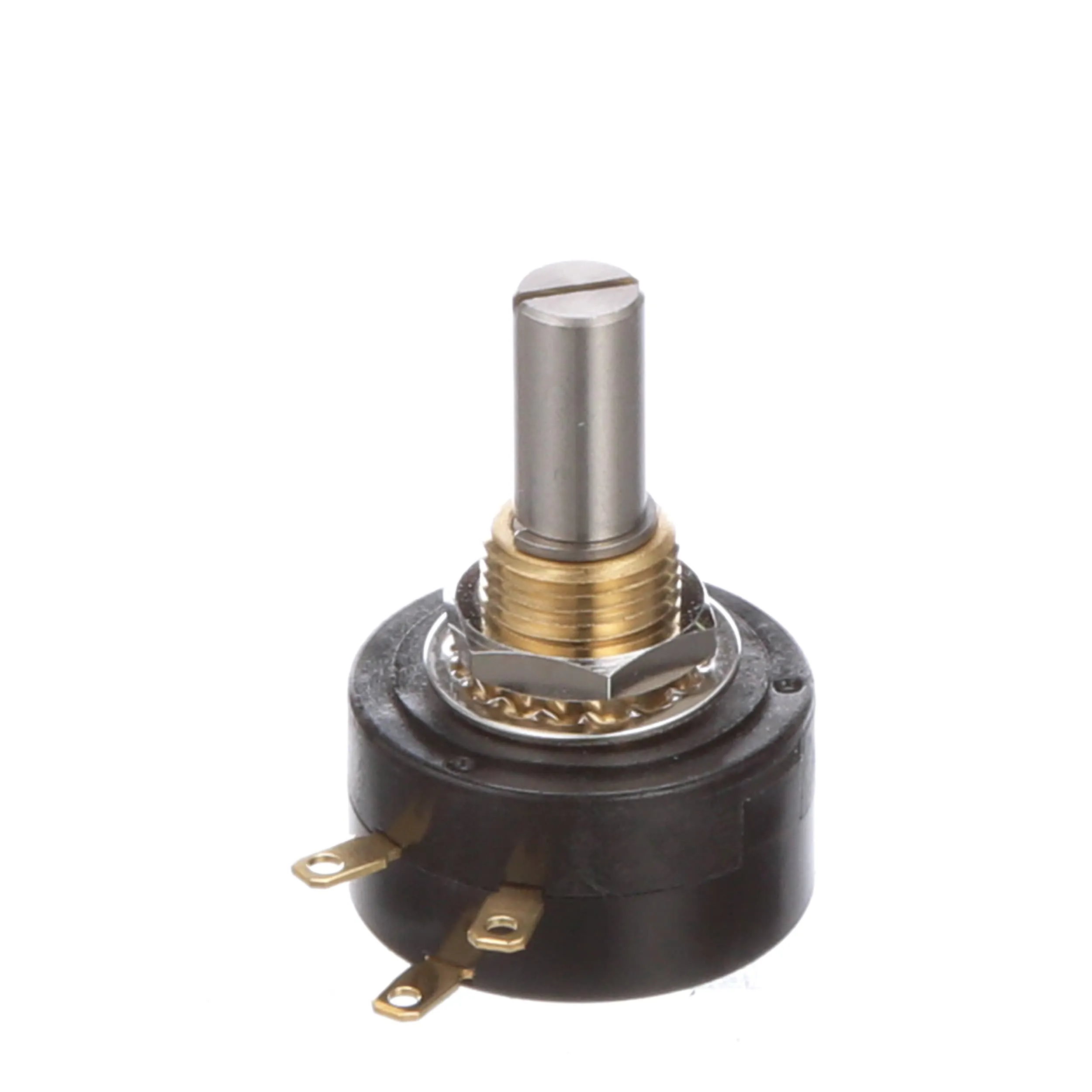

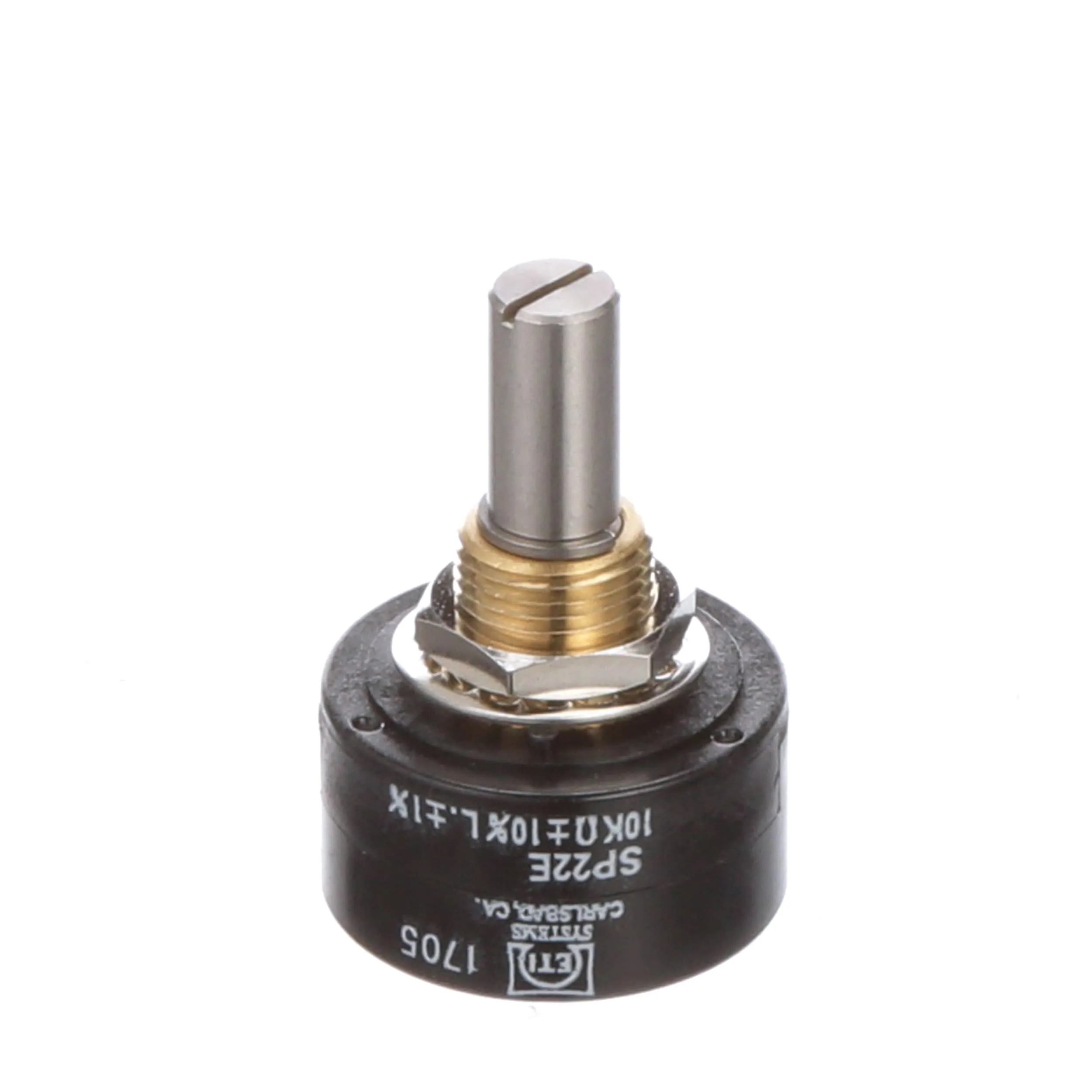

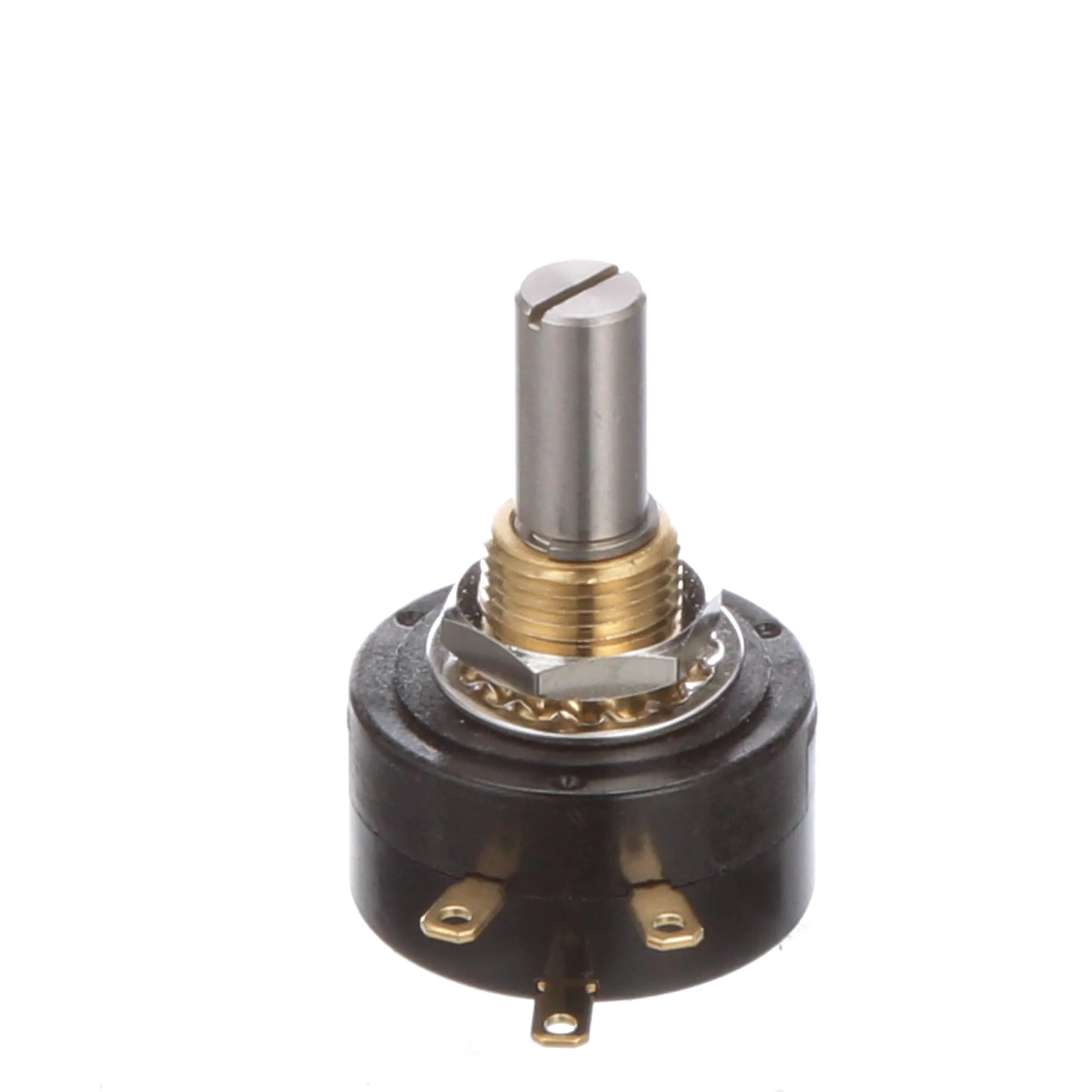

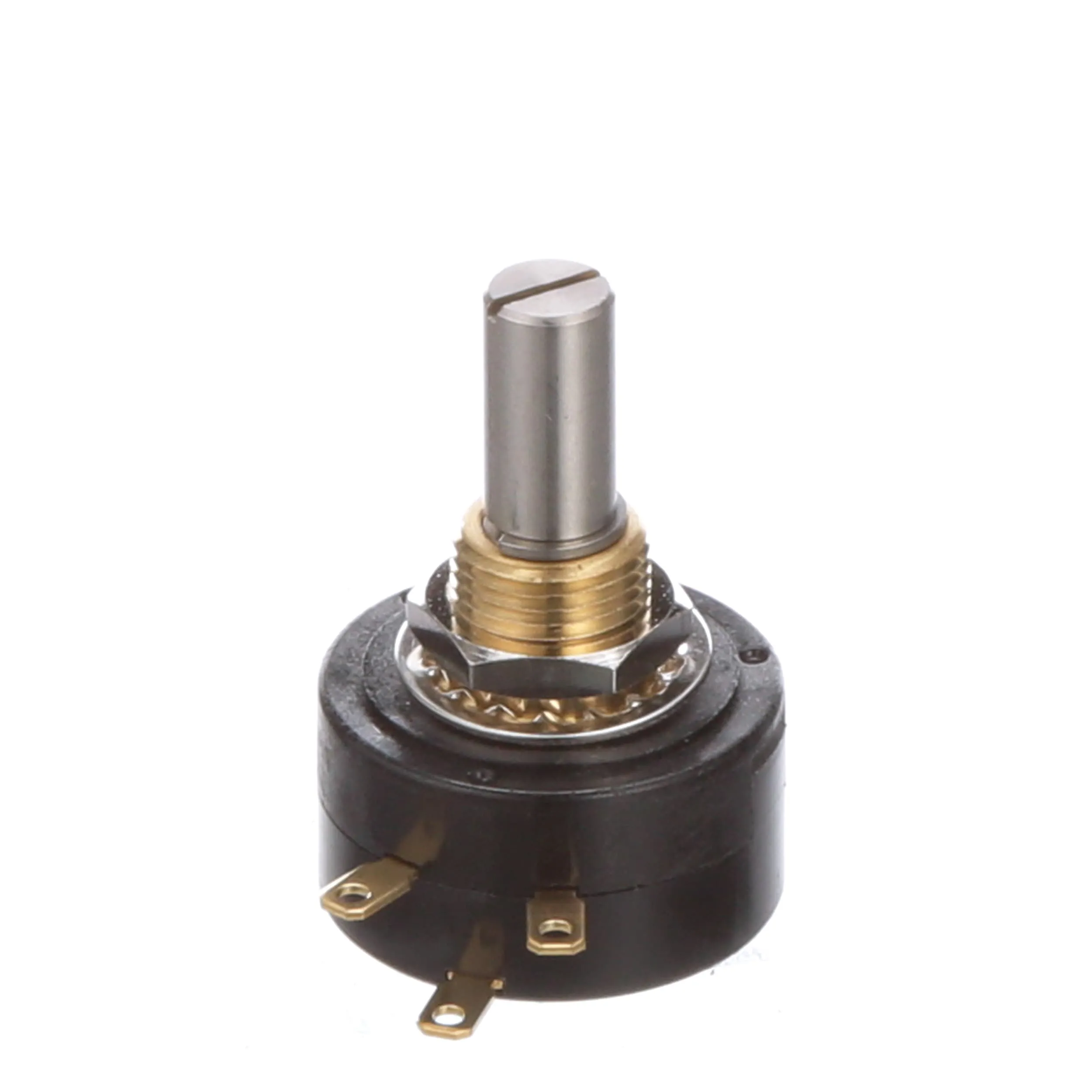

Brass bushing, stainless steel slotted shaft and gold plated terminals. Electrical Angle: 320°. Mechanical Angle: 320°. Operating Temperature Range: -55°C to 105°C. Power Rating: 1 watt. Starting Torque: 0.8 oz. in. maximum. Stop Strength: 84 oz. in. Options: Tighter tolerances, other resistance values, shaft modifications, sealed construction, multiple gangs, continuous rotation, center tap.
SP22E. Co-molded conductive plastic element gives superior performance over film type elements. Life Shaft Revolutions: 10,000,000. Resistance tolerance: 10%. Linearity: 1%. Insulation Resistance: 1000 Megohms @ 500 VDC. Dielectric strength: 500 VAC. Output Smoothness: Below 0.1%.
SW22E. Wirewound element. Life Shaft Revolutions: 500,000. Resistance tolerance: 3%. Linearity: 0.5%. Insulation Resistance: 1000 Megohms @ 1000 VDC. Dielectric strength: 1000 VAC.
