Bandsaw Machine Semi-Automatic 90o with double vice

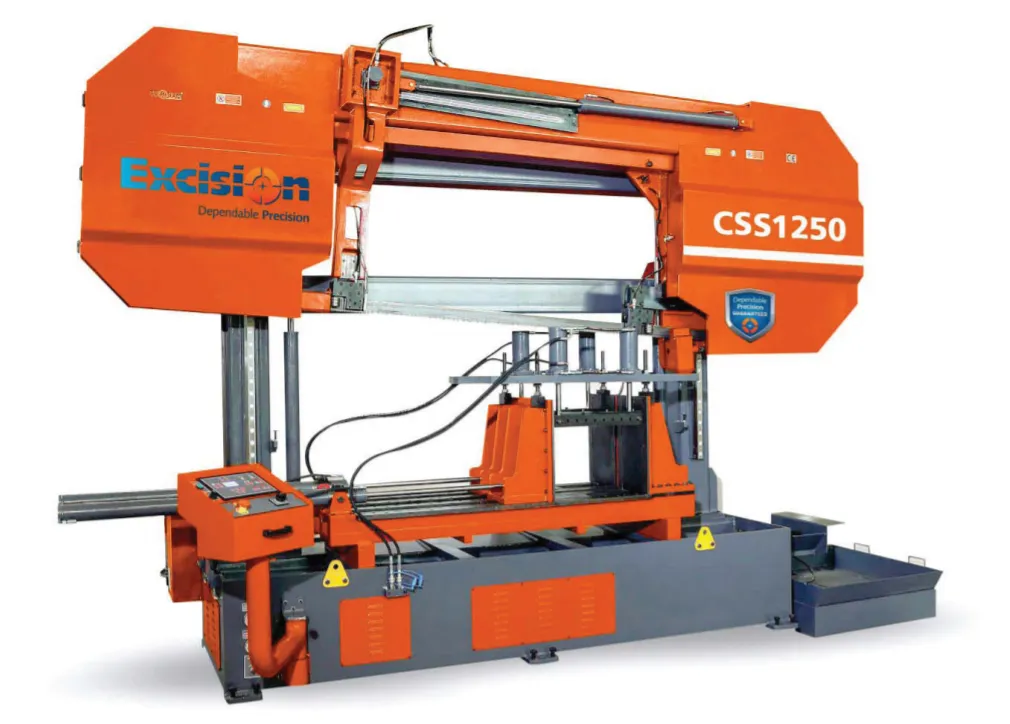

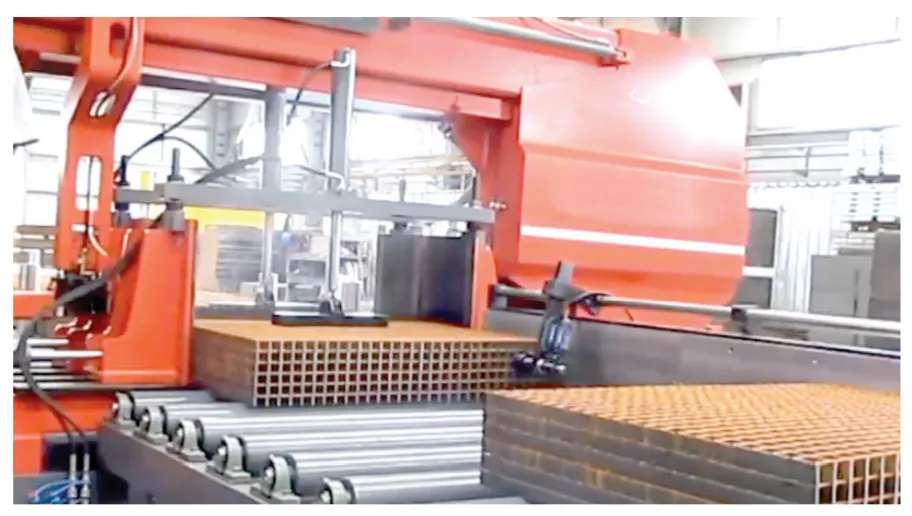

CSS1250 model is a semi automatic bandsaw machine with double column body design. The Machine is designed for straight cutting. Precision cutting capability has been gained with linear guides. Body up-down movements are done as hydraulic. The cut material can be easily tightened thanks to hydraulic vises. Feeding material is manual. The machine is controlled on digital control panel.

• Inverter - Provides to adjust blade speed up to workpiece diameter, thickness and hardness.
• Blade Bedding - with Carbide and Bearings
• Swarf Brush - Removes swarfs to keep clean the wheels and blade.
• Bevel Helical Gearbox

• Main Motor: 7.5 kW
• Gearbox: Bevel Helical PKD 2390 High Efficiency
• Hydraulic Motor: 1.5 kW
• Coolant Motor: 0.25 kW
• Blade Speed: 25 - 90 m/min
• Blade Dimensions: 9,180 x 67 x 1.6mm
• Machine Weight: 7,500 kg
• Machine Dimensions: 1500W x 4400L x 2700H mm
• Table Working Height: 785mm
