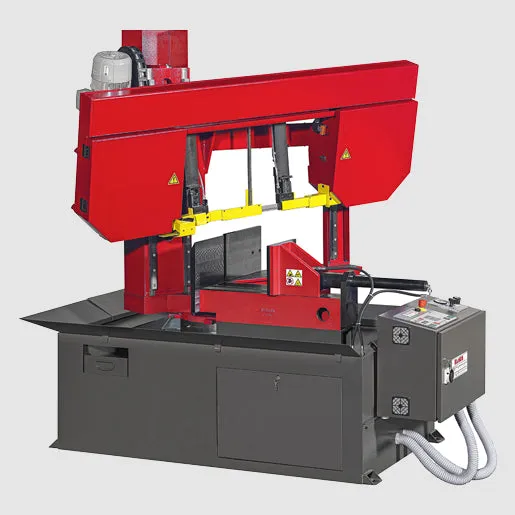

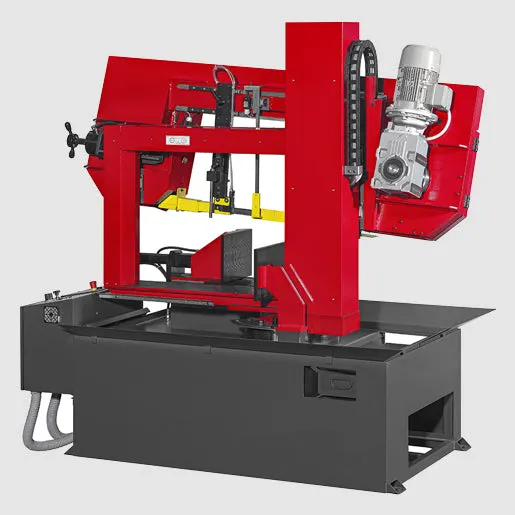

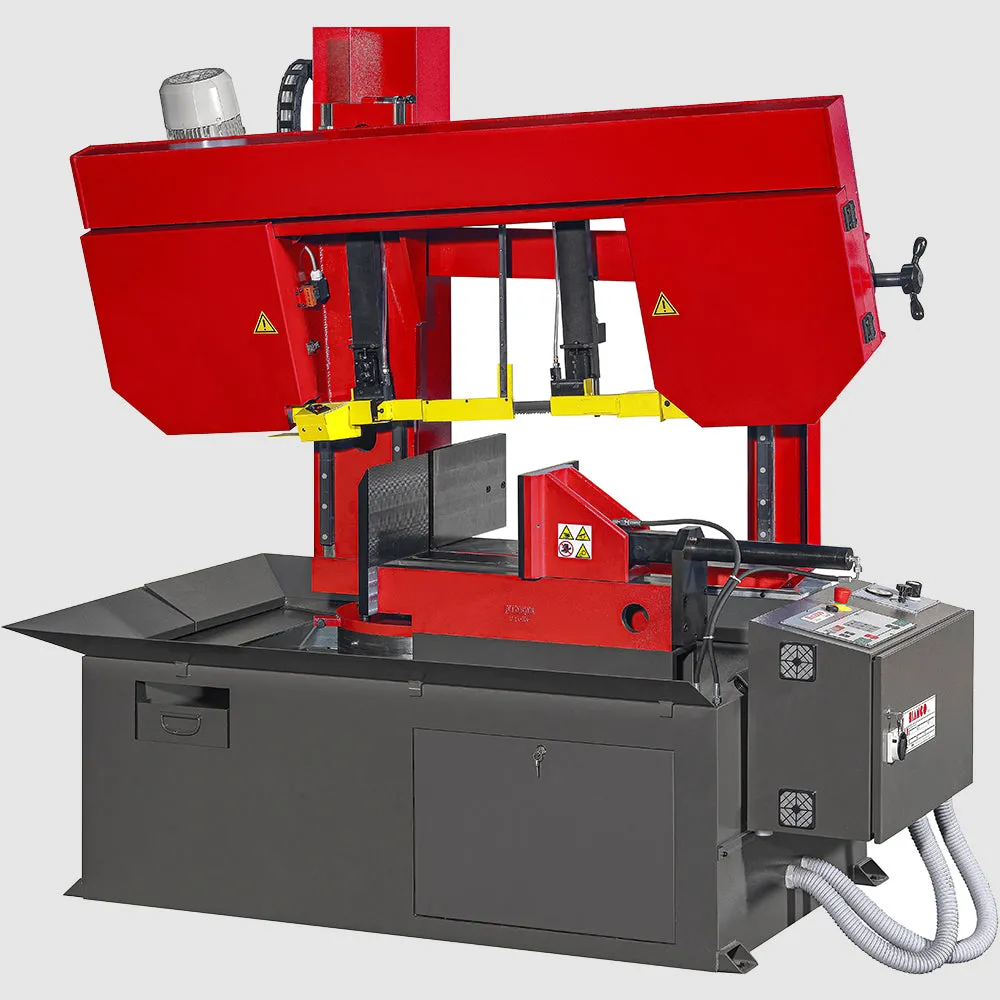

Semiautomatic twin column band saw machine with cutting capacities up to 60° right

Semiautomatic band saw machine equipped with bow and vice movement at hydraulic control, automatic fast up/down bow movement controlled by feeler pin and cutting progress with infinitesimal adjustment. Twin-column vertical descent. The machine has double safety button for cycle start and low voltage electrical system according to EC rules. The machine’s design combined with the technical features grant high precision and absolute reliability.

FEATURES

• Two columns vertical bow descent on ball bearing guides
• Worm reduction gear box
• Cutting capacities up to 60°right
• Bow: red RAL 3002, base: gray RAL 7022

STANDARD ACCESSORIES

• Cleaning brush
• Inverter (~3)

90° mm	450	450	450x450
45° mm	350	350	350x420
60° mm	180	180	180x400
Blade	4580x34x1.1
