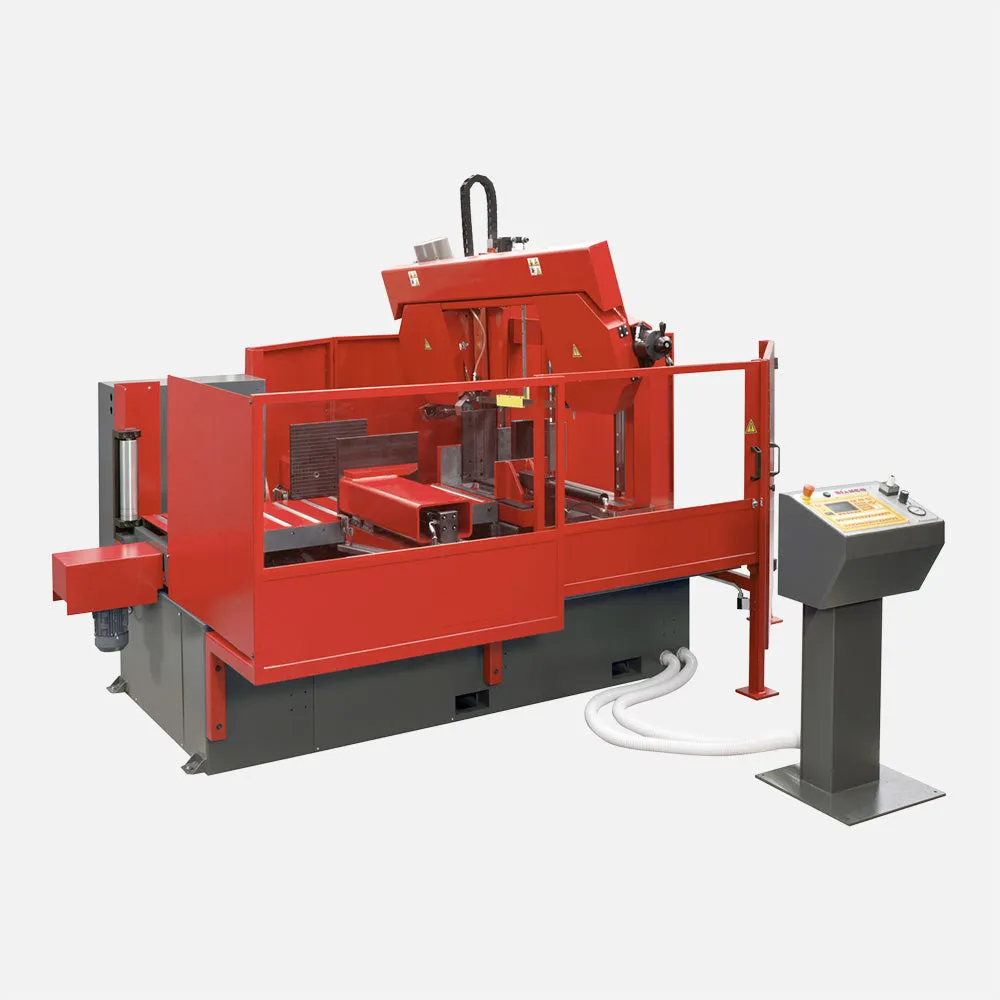

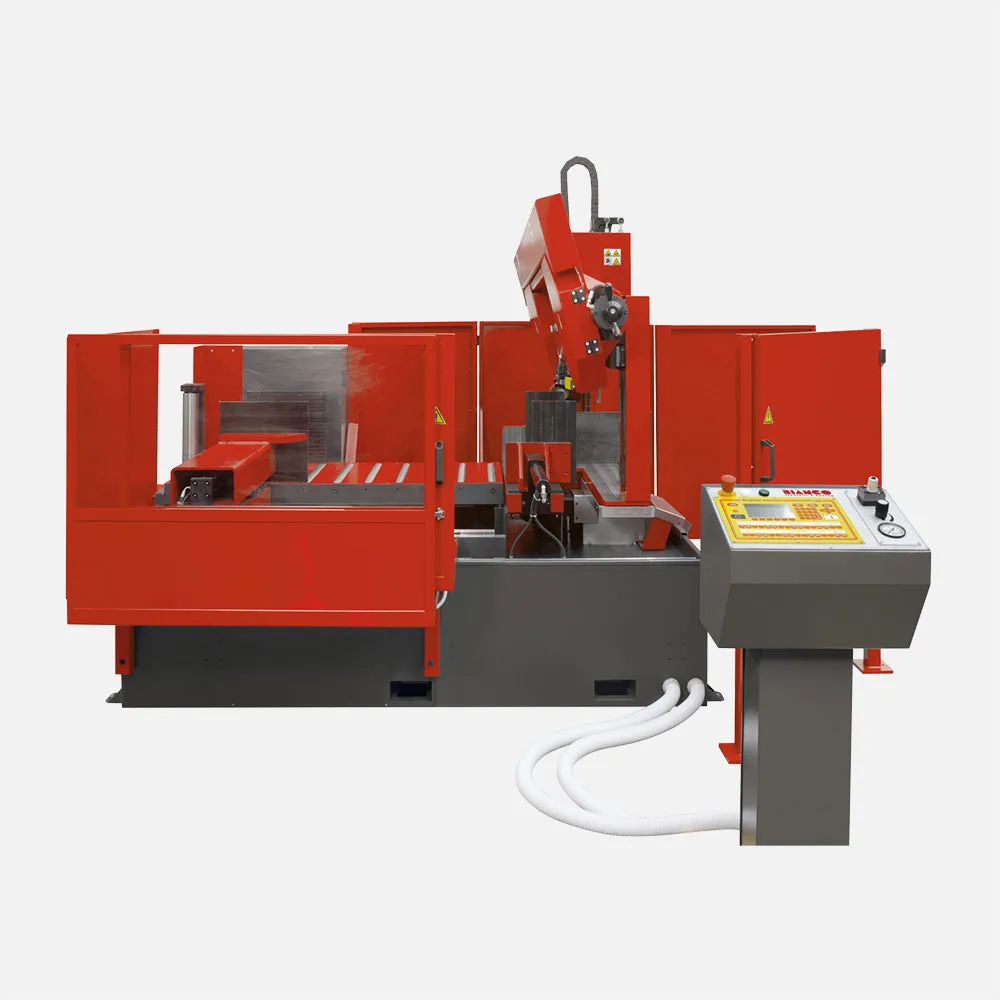

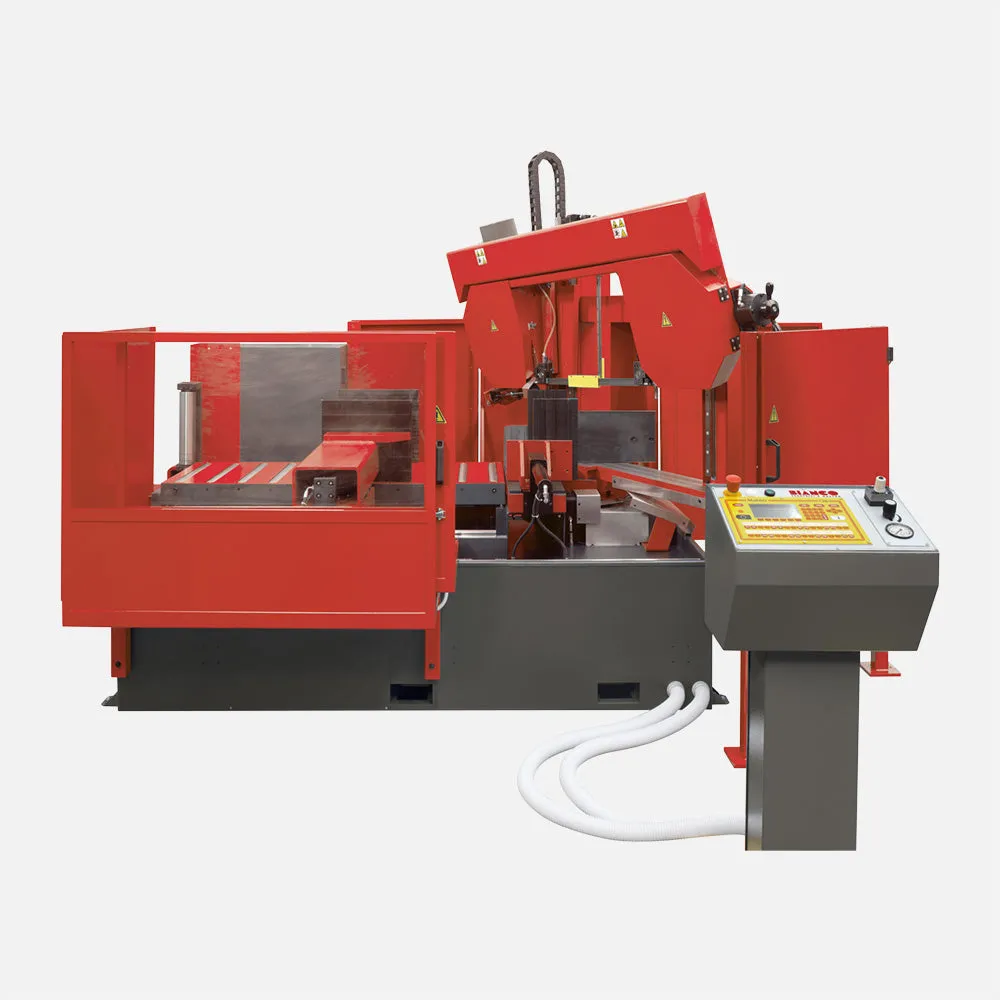

Automatic twin-column band saw machine

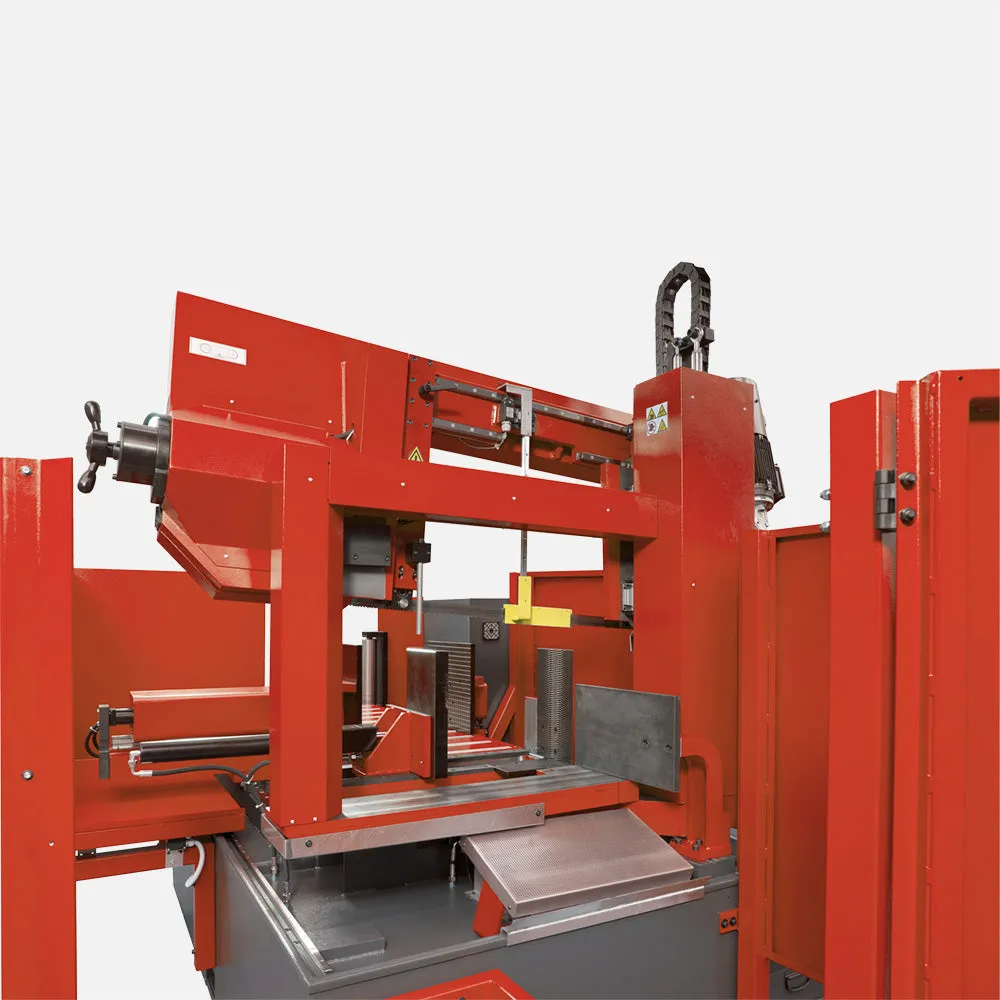

Twin column automatic bandsaw machine with 15° tilted blade wheels. Bow, base and columns in steel construction, vertical bow descent on ball bearing guides, hydraulic blade tensioning controlled by limit switch, low noise hydraulic system, automatic bow fast up/down movements controlled by feeler pin. Down feed with infinitesimal adjustment. CNC to control all the machine functions and possibility to store up to 99 cutting programs. “Touch” version is equipped with a 7” touch screen control panel. The machine has perimetrical safety protection, double safety button for cycle start-up and low voltage electrical system according to EC rules
ALSO AVAILABLE WITH 7'' OR 10'' TOUCH SCREEN CONTROL PANEL.
FEATURES
- Hydraulic controlled two columns vertical bow descent on ball bearing guides
- Feeding carriage controlled by brush-less motor sliding on linear ball bearing guides
- Blade speed setting by inverter
- Worm reduction gear box
- 15° tilted blade wheels
- Hydraulic blade tensioning controlled by limit switch
STANDARD ACCESSORIES
- Feeding carriage controlled by Brush Less motor
- Cleaning brush
- Inverter
'DL' Standard equipement on TOUCH models
'PAT' Automatic cutting parameters setting (standard on TOUCH mod.)
'RA' Bow mitre rotation controlled by DC motor
| 90° mm | 450 | 450 | 450x450 |
| 45° mm | 320 | 320 | 400x320 |
| 60° mm | 180 | 180 | 180x280 |
| Blade | 4950x34x1.1 | ||
